Product Parameter : P4 indoor stage rental led screen
| Item | P4 indoor led screen |
| Model number | P4-16S |
| Module size | 250*250mm |
| Pixel pitch | 4mm |
| Pixels density | 62500dots /㎡ |
| Pixel configuration | 1R1G1B |
| LED Package | SMD2121 |
| Pixel resolution | 64dots(W)*32dots(H) |
| Max Power Consumption | 18W |
| Drive tryp | Constant Drive (MBI5124) |
| Scan mode | 1/16 scan |
| Port type | HUB75-B |
| Brightness of white balance | ≥2000cd/ ㎡ |
| Quantiy of module | 8 |
| Power supply | 5V/40A |
| Best viewing distance | 4-20M |
| Best viewing angle | 160º(W) 120º(H) |
| Thickness | 75mm |
| Working volatge | 110-220V |
| Average Power | 310W/S |
| Working temperature | -40 ℃～50℃ |

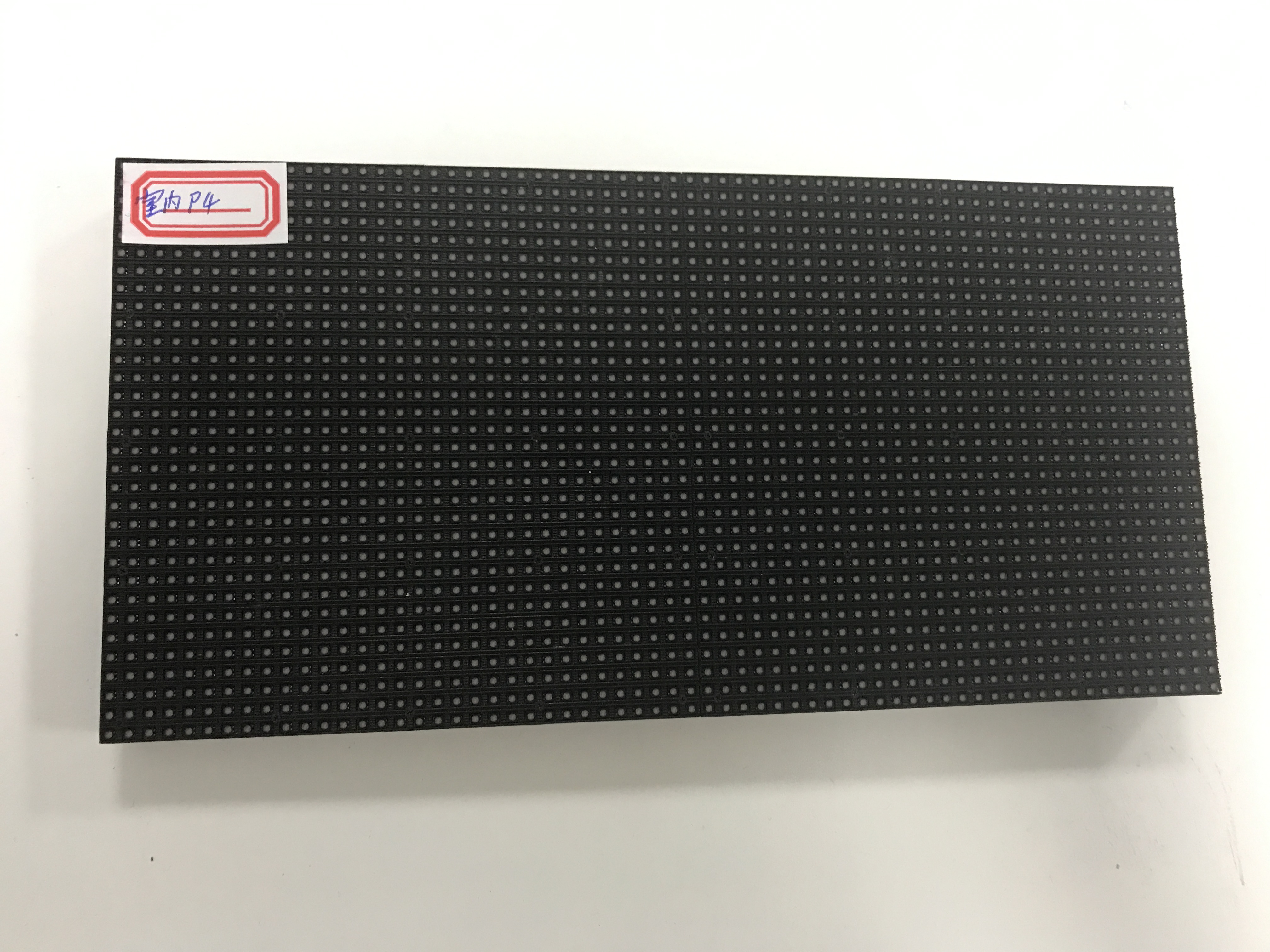

LED Module Detailed Image
Size : 256*128mm
LED Screen cabinet Detailed Image
Size : 512* 512mm
Prodcuts Features & Apllication Fields
At first , our screen use Nova system and MBI 5124IC , so that brightness and refresh rate can be high. On average , brightness can be about 2000cd/sqm , and refresh rate can be up to 1920HZ.
As for performance and function , it is relatively small pixel for stage rental led screen . can be used in important and formal scenes. And it is suitable for stgae rental , congress, wedding ceremony , parties ,and many events.
About the price , it is reasonable, not too high for distributors , which is economic .
Services
1.Technical training
Out company will train users based on the manual , system use and maintenance guide .
The training include system use, system maintenance and system protection ,after sales serives. mode.
A. Phone service
Please provide your name and phone number ,and your product detailed fault problem , our technical engineer will offer tecnhnical support and guidance according to your description .
B. Real-time conmmunication service
Cheng Wen after-sales service engineer will help you solve fault problem through whtsapp , skype & e-mail , for example , software or demo video that shows how to operate and control the system .
C.Remote control service
We can remotely link customers ' computers , in order to install and set up softwares in your computers
,and to dispose of technical faults of led display system.
Trade Terms
| Payment methods | Western union ,T/T ,Money Gram ,RMB transfer |
| Deposit | 30% of total amount |
| Production time | less than 20sqm , 15-18 days , 50 sqm , 25-30 dyas . |
| Shipping methods | By express , air , sea . |
| MOQ | 1SQM /1PC |
| Sample order production time | 7 days |
| Discount | Discount can be offered upon order quantiy |
How to get suitable screen ?
(1) The scenes that display is used for.
(2) Visable distance , viewing angle
(3) Requirement of cabinet resolution
(4) requirement of installation environment
(5)Budget

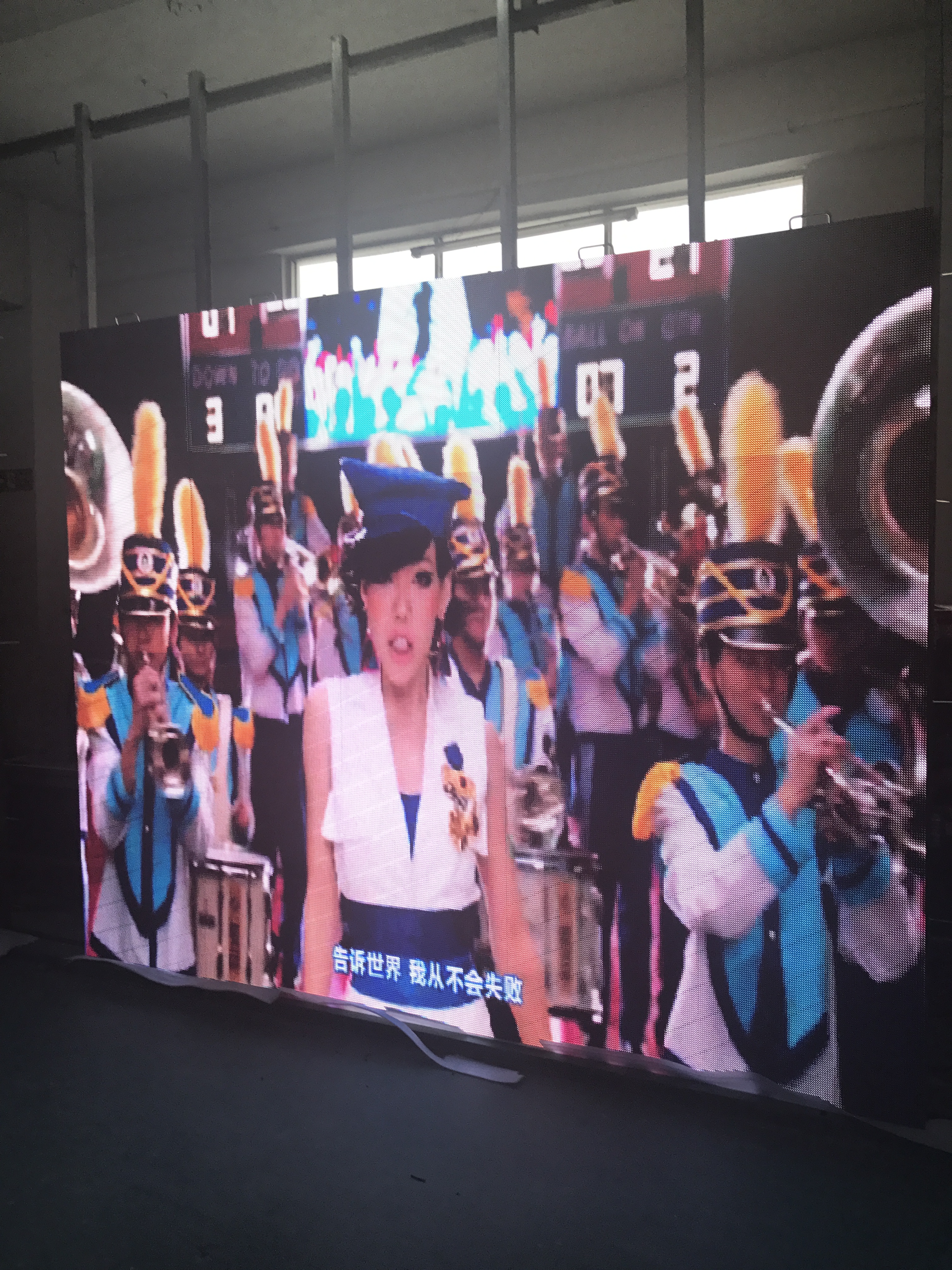

Factory testing photo
