Product Parameter : P6 indoor stage rental led screen
| P6 SMD INDOOR FULL COLOR ALUMINUM CABINET CATALOGUE |
| Item | Parameter |
| Pixel Pitch | 6mm |
| LED Encapsulation | SMD3528/1R1G1B |
| LED Chips | Epistar |
| Cabinet resolution | 96dots*96dots |
| Cabinet size(mm*mm) | 576mm576mm |
| Pixel density | 27777dots/m² |
| Cabinet weight | 11kg/pcs |
| Cabinet's material | Aluminum |
| Cabinet Color | RED / BLUE / BLACK |
| Gray Scale | Recommended 256 level |
| The best viewing angle | Horizontal:140 Vertical:90 |
| Max Power Consumption | 500W/ m² |
| Control Mode | Video frequency synchronization |
| Optimal Viewing Distance | ≥6m |
| Brightness | ≥2000cd/m² |
| Blind Spot Rate | <0.0001 |
| Brightness Control | 0-255 Grade |
| Contrast | 100 levels adjustable |
| MTBF | >5000Hours |
| Lifespan | >100000Hours |
| Power Supply Mode | AC220V/50HZ or AC110V/60HZ |
| Protection Level | IP41 |
| Operating temperture | Operation:-30°C~+60°C |
LED Module Detailed Image
Size : 192*192mm

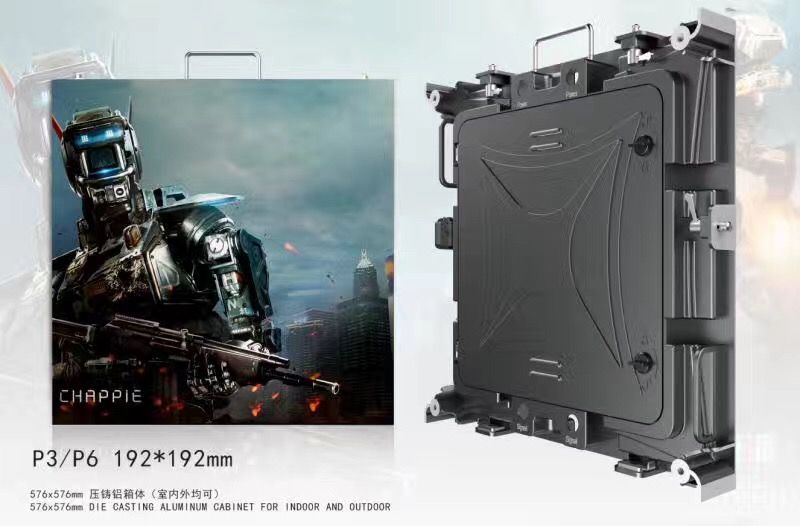

LED Screen cabinet Detailed Image
Size : 576* 576mm
Prodcuts Features & Apllication Fields
At first , our screen use Nova system and MBI 5124IC , so that brightness and refresh rate can be high. On average , brightness can be about 2000cd/sqm , and refresh rate can be up to 1920HZ.
As for performance and function , it is relatively small pixel for stage rental led screen . can be used in important and formal scenes. And it is suitable for stgae rental , congress, wedding ceremony , parties ,and many events.
About the price , it is reasonable, not too high for distributors , which is economic .
Services
1.Technical training
Out company will train users based on the manual , system use and maintenance guide .
The training include system use, system maintenance and system protection ,after sales serives. mode.
A. Phone service
Please provide your name and phone number ,and your product detailed fault problem , our technical engineer will offer tecnhnical support and guidance according to your description .
B. Real-time conmmunication service
Cheng Wen after-sales service engineer will help you solve fault problem through whtsapp , skype & e-mail , for example , software or demo video that shows how to operate and control the system .
C.Remote control service
We can remotely link customers ' computers , in order to install and set up softwares in your computers
,and to dispose of technical faults of led display system.
Trade Terms
| Payment methods | Western union ,T/T ,Money Gram ,RMB transfer |
| Deposit | 30% of total amount |
| Production time | less than 20sqm , 15-18 days , 50 sqm , 25-30 dyas . |
| Shipping methods | By express , air , sea . |
| MOQ | 1SQM /1PC |
| Sample order production time | 7 days |
| Discount | Discount can be offered upon order quantiy |
How to get suitable screen ?
(1) The scenes that display is used for.
(2) Visable distance , viewing angle
(3) Requirement of cabinet resolution
(4) requirement of installation environment
(5)Budget
